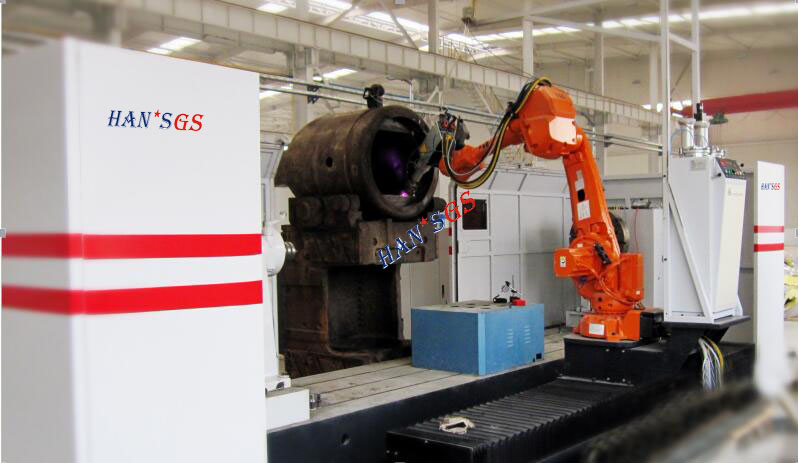

Advanced robot 3 dimensional CNC laser cutting machine
Laser cutting series robot cutting workstation consists of fiber laser source (include laser power supply, water chilling unit, transmission fiber, laser guidance system and so on),laser cutting head (include follow up sliding table) and robot.
Robot laser cutting machine produced by our company is CNC laser equipment. It consists of world advanced fiber laser source,Sweden fiber cutting head,light follow up sliding table and 6 axis robot.It Highly integrated laser cutting technology, precision machinery manufacturing and CNC technology. It’s mainly used for carbon steel, stainless steel,spring steel,alloy steel,aluminum alloy and other metal materials such as cutting and forming with the characteristics of high speed,high precision,high efficiency,high performance price ratio and so on. And it’s widely used in aerospace, motorcycle manufacturing, engineering machinery, textile machinery, agricultural machinery, elevator manufacturing, automobile manufacturing, metal manufacturing, IT and other industries of metal plate cutting.
The main technical parameters are as follows:
Focal length of focal lens | 125mm |
The focal length of the beam expander | 104mm |
The diameter of the focal lens | 1.1″ |
Light aperture | 25mm |
Measurement range | 1~5mm |
Adjustment range | Vertical-12.5mm~+12.5mm |
Measurement resolution | 0.01mm |
Total weight | 3.5Kg |
Maximum pressure | 20bar |
Interface type | QBH |
Cooling mode | Water cooling |
Outline dimension | 380mm*300mm*160mm |
Fiber laser cutting robot workstation performance characteristics
1, can cut wide range of materials.Carbon steel, stainless steel, aluminum alloy, and other sheet metal cutting.
2, configuration, three-dimensional cutting software robots, which can realize three-dimensional cutting.
3, wide application range.Aerospace, locomotive manufacturing, engineering machinery, textile machinery,
agricultural machinery, elevator manufacturing, automobile manufacturing, hardware electrical appliance
manufacturing, IT
4, low consumption.500 w: electricity about 3-6 degrees per hour.
5, cutting speed, high efficiency, safe operation and stable performance.
6,cutting flat, beautiful appearance.
7, professional software can design all kinds of graphics or text instant processing, processing and flexible,
simple operation, convenient.
Our Production Manager is explaining our 3D Laser Cutting Machine products to our domestic customers
Applications:
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile,
food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances,
kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries
